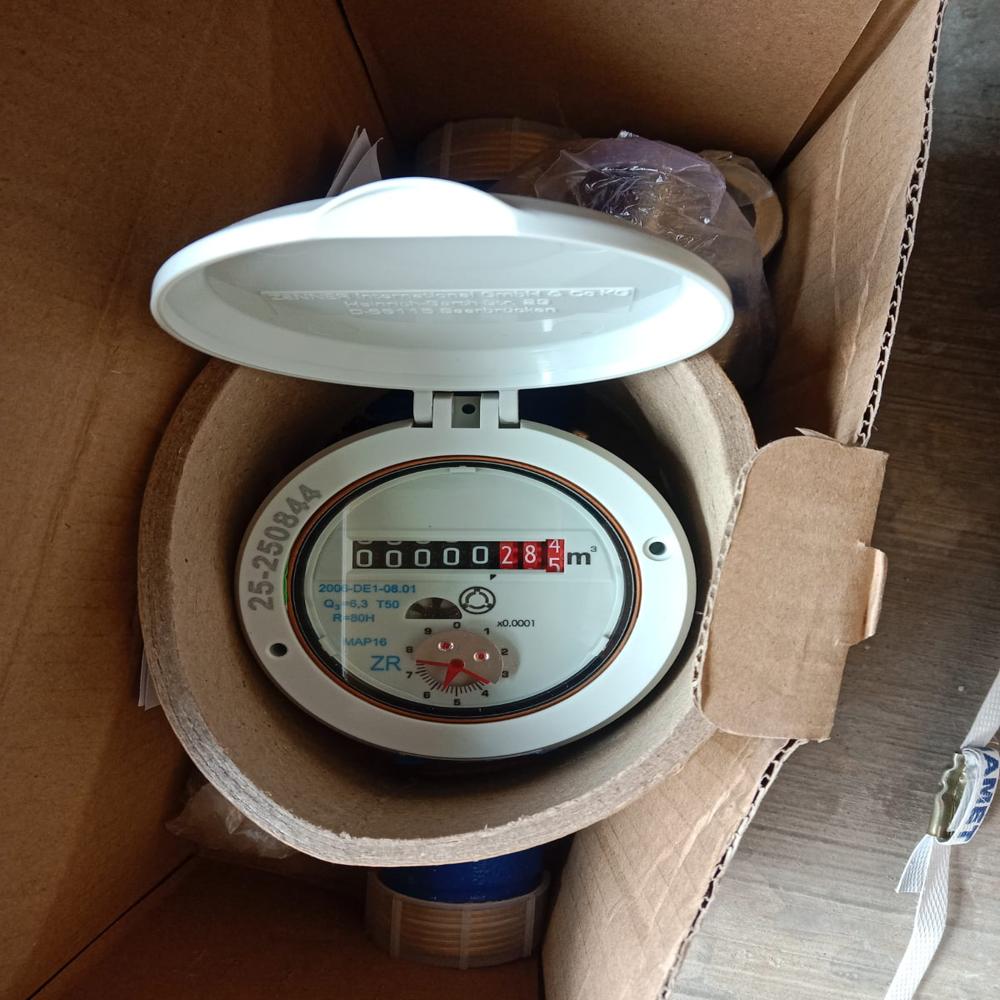

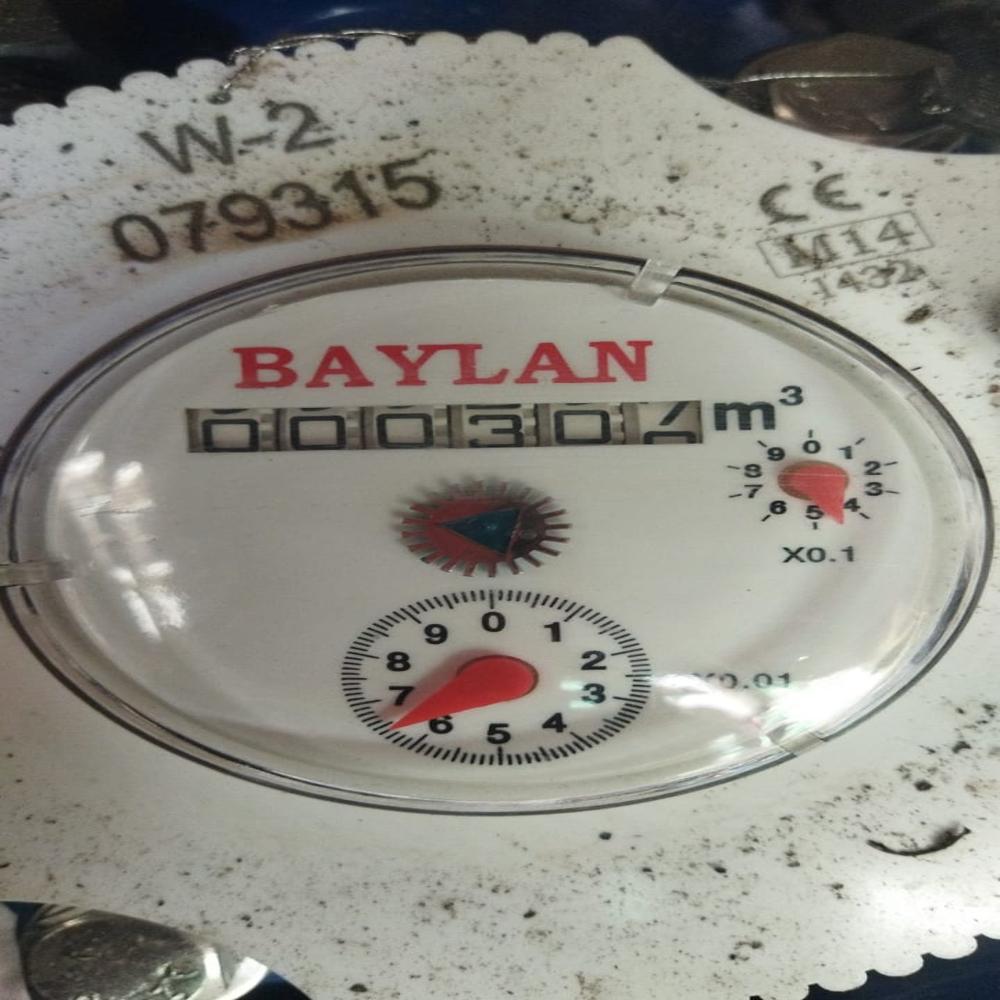

baylan water meter zenner b class

baylan water meter zenner b class Specification

Dimension (L*W*H)
Standard for DN15 (approx. 165 mm length)

Model
Baylan Zenner B Class

Velocity Range
0.03 - 3.0 m3/h

Flow Rate
Qmin 0.03 m3/h, Qmax 3.0 m3/h

Mounting
Horizontal

Measuring Units
Cubic meter (m3)

Operating Temperature
Up to 30C for cold water

Diameter
DN15 (15 mm)

Humidity %
0-100% RH (register protected)

Resolution
0.0001 m3 (minimum reading value)

Sensor Type
Turbine (Woltman/Rotary Piston mechanism)

Cut Size
DN15 mm

Storage Temperature
-5C to 50C (recommended)

Capacity
Up to 99999 m3

Signal Type
None (mechanical meter)

Protection
IP68 (register is water and dust-proof)

Stability
Long-term, up to 8 years service life

Response Time
Immediate, as flow begins

Axis Type
Horizontal installation

Connecting Type
Threaded (BSP connection)

Language
Universal numeric and pointer

Process Connection
Threaded ends

Color
Blue body, Gold bezel

Output
No electrical output (mechanical reading)

Length
Approx. 165 mm

Equipment Type
Mechanical Water Meter

Application Media
Water

Temperature Range
Up to 30C

Input
Water flow

Load Capacity
Suitable for domestic and small commercial use

Sensitivity
Low starting flow sensitivity

Housing Material
Coated Cast Iron/Brass

Pressure Range
Max. 16 Bar

Connector
1/2 inch - 3/4 inch (DN15) BSP thread

Connectivity Type
Not applicable (mechanical meter)

Measurement Range
0 - 99999 m3

Material
Body: Brass/Coated Iron, Register: Polymer/Glass

Power Supply
Not required (mechanical meter)

Accuracy
Class B as per ISO 4064

Display Type
Analog roller counter with pointers

Range
Qmax 3.0 m3/h, Qn 1.5 m3/h

Maximum Reading
99999 m3

Minimum Reading
0.0001 m3

Installation Position
Horizontal (recommended) or vertical

Suitable Fluid
Cold potable water

Protection Cover
Anti-tamper, hinged lid

Tamper Resistance
Secure, factory sealed register

Maintenance
Zero maintenance required

Compliance
ISO 4064, MID certified

Reading Accuracy
2% at Qn, 5% at Qmin

Rotor Material
Engineering polymer

baylan water meter zenner b class Trade Information

Minimum Order Quantity
50 Pieces

Delivery Time
5-7 Days

baylan water meter zenner b class About

Baylan Water Meters Overview

Baylan is a Turkish company that manufactures a wide range of water meters: wettype, drytype, multijet, singlejet, remote reading (AMR / RF / LoRa / etc.), volumetric, etc. LoRa Alliance+4BaylanWaterMeters+4Baylan+4

Their meters are used for potable water (drinking water), commercial, industrial, municipal, etc. ROZETKA+3Scribd+3Baylan+3

They certify many of their models under MID (Measuring Instruments Directive) and international / European standards (e.g. TS EN ISO 4064) for accuracy and performance. Scribd+1

Typical Features & Common Technical Specifications

Here are the common / typical features & specs youll find in many Baylan meters.

Specification	Typical Value / Description
Measuring principle	Multijet (for many wettype meters) and singlejet for some models. Drytype or semidry type for others. Environmental XPRT+1
Use / Application	Potable (drinking) water metering; for domestic & small commercial use; some built for environments exposed to moisture, basements, etc. Scribd+1
Body material & protection	Corrosionresistant brass body, electrostatic paint, special tempered / strong glass cover for dial, rotating lid (360) in many models. Environmental XPRT+1
Temperature	Suitable for cold water up to 50C. Scribd+1
Pressure rating	Max working pressure 16 bars in many models. Scribd+1
Warranty / Maintenance	3 years warranty is common; almost no maintenance; spare parts availability for 10 years. Scribd+1
Additional features	Low pressure loss, good sensitivity at low / initial flows. Environmental XPRT+1 Nonreturn valve in many models. Scribd Double filter in many wettype meters. Environmental XPRT+1 Pulse output, AMR / remote reading optional in many models. Scribd+1 Optical reading (i.e. clear dial, good visibility). Environmental XPRT+1
Certifications / Standards	MID certified; TS EN ISO 4064; OIML R49 (in some cases); environmental / electromagnetic / mechanical classes specified. Scribd+2Scribd+2

Example Model: Baylan TY3 (MultiJet WetType)

To illustrate, here are spec details for the TY3 model. Scribd+1

Type: Multijet, wettype water meter, MID certified. Scribd+1
Potable Water: Yes, safe for drinking water use. Scribd
Maximum Working Temperature: 50C. Scribd
Maximum Working Pressure: 16 bar. Scribd
Flow Rates:
Q4 (Overload): 7.875 m/h Scribd
Q3 (Permanent flow): 6.3 m/h Scribd
Q2 (Transitional flow): various depending on size values given in the datasheet. Scribd
Q1 (Minimum flow): also small values depends on the nominal diameter. Scribd
Maximum Registration Capacity: e.g. up to 99999.999 m (depending on display / resolution) for larger sizes. Scribd
Dial / Register: Special glass; optical reading; 360 rotating lid; double filter; nonreturn valve. Scribd

Variants & Advanced Meters

Baylan also offers more advanced models with additional features:

Drytype multijet meters (TK series) with IP68 protection, pulse outputs, sometimes LoRaWAN / RF or Wireless MBus for remote reading. LoRa Alliance+2Scribd+2
Ultrasonic water meters: no moving parts, better sensitivity at low flows, reverse flow detection, etc. Some have features like data logging, interfaces like MBus, wMBus, Modbus etc. Scribd

What to Check / What the Product Description Should Include

When getting a Baylan water meter, or checking a product sheet, here are the key things you should see to understand if its right for your use:

Nominal Diameter (DN) 15, 20, 25 mm etc.
Type: Wettype, drytype, semidry, singlejet / multijet / ultrasonic.
Flow ranges: Minimum flow (Q1), transitional (Q2), nominal/permanent (Q3), overload (Q4).
Accuracy class: Class B, Class 2, Class 1 etc the percentage error allowed in various flow zones.
Temperature & Pressure ratings max temperature, max working pressure.
Body material, protection (e.g. brass, corrosion resistant; glass, IP rating for register cover; nonreturn valve; double filters etc.).
Additional features: pulse output / remote reading; warranty; maintenance; spare parts; regulatory certifications.

Overview

Baylan is a major water meter manufacturer based in Turkey, producing mechanical and electronic meters in the range from small residential sizes up to bulk / industrial sizes. BaylanWaterMeters+1
Zenner is a European (German) metering company with a wide portfolio of water meters (single-jet, multi-jet, Woltman, ultrasonic, remote reading, etc.) ZENNER International+1
The term Class B in the context of a water meter refers to its accuracy class, defining permissible error tolerances over its operating flow range. For example, a Class B meter typically allows 5% error in certain zones (or 2% in the main flow range) depending on standard. ishwarienterprises.com+2visterma.pl+2

Thus, a Baylan Zenner B Class meter would imply a meter manufactured (or co-branded) by Baylan or offered by a seller, with an accuracy class B as per Zenner/industry standards.

Key Characteristics / Specifications (Typical for Class B Meters)

Here are the common or expected features and parameters of a Class B water meter in this category:

Parameter	Typical Value / Feature	Notes / Explanation
Accuracy Class (Class B)	5% (in certain sectors)	The meters allowable measurement error under normal flow conditions; some parts of the flow range may have 2% tolerance. ishwarienterprises.com+2visterma.pl+2
Nominal Flow (Qn)	e.g. 6 m/hour	For example, in one listing: Recommened flow rate (Qn) = 6 m/hr for a 25 mm Class B meter. NZ Farm Source
Max Flow (Qmax)	e.g. 12 m/hour	In the same listing, Qmax = 12 m/hr. NZ Farm Source
Minimum Flow (Qmin / Q1)	e.g. 120 L/hr (or 0.12 m/hr)	The lowest flow at which the meter can reliably detect or start measuring. NZ Farm Source
Operating / Working Pressure	Up to 16 bar	Many class-rated meters support working pressures of 16 bar (1600 kPa). Hydroflow+1
Operating Temperature / Media	Up to 50 C for cold water meters	Many standard cold-water meters are rated up to 50 C. Raminex+2visterma.pl+2
Meter Body / Construction	Typically brass or cast iron, epoxy coated	For larger sizes (bulk, Woltman types), epoxy-coated cast iron with removable inserts is common. Hydroflow+2visterma.pl+2
Register / Counter	Dry dial, multiple roller digits, often with modulator disc	Many meters use a dry register with sealed rollers and possibly a modulator disc to allow non-reactive scanning for remote reading modules. Hydroflow+2visterma.pl+2
Pulse / Remote-Read Capability	Reed switch / pulse output / communication module	Many Class B / mid-range meters allow retrofitting or inclusion of pulse or electronic modules (wired or radio) for remote reading. visterma.pl+2Hydroflow+2
Hydraulic / Flow Features	Low starting flow, wide measuring range, low head loss	Good meters are designed to detect low flows and maintain stability with minimal pressure drop. Hydroflow+1
Installation Orientation	Horizontal (often preferred), sometimes vertical/inclined	Some meters are designed primarily for horizontal installation; vertical mounting may affect accuracy. Hydroflow+1

Example Use & Limits

The meter is suitable for domestic, commercial or small industrial water supply lines, especially where a moderate level of accuracy is required but cost is a factor.
It is not designed for extremely low flows (below Qmin) or for very high-precision measurement tasks (where Class A or higher might be required).
If remote metering or connectivity is desired, ensure the model supports pulse output or electronic modules.
Ensure that operating conditions (temperature, pressure, flow direction) match the meters rating.

Advanced Accuracy and Long-Term Reliability

The Baylan Zenner B Class Water Meter delivers Class B accuracy according to ISO 4064 standards, ensuring precise water consumption measurement for homes and small businesses. Its engineering polymer rotor and robust brass body guarantee lasting performance, maintaining stability and accuracy over an extended operational life, typically up to 8 years.

Zero Maintenance and Tamper-Proof Security

Designed for user convenience, the water meter requires no routine maintenance. Its anti-tamper hinged lid and factory-sealed register protect against unauthorized access, while IP68-rated waterproofing shields the internal mechanisms from dust and moisture, even in challenging environments.

Simple Installation and Universal Compatibility

With a recommended horizontal Axis installation but also supporting vertical mounting, the meter connects via standard 1/2"-3/4" BSP threads (DN15 size). Its mechanical design eliminates the need for electrical supplies or connectivity, making the Baylan Zenner adaptable to a wide range of water systems, old or new.

FAQ's of baylan water meter zenner b class:

Q: How is the Baylan Zenner B Class water meter installed?

A: The Baylan Zenner B Class water meter is best installed in a horizontal position for optimal accuracy, although vertical installation is also possible. It connects easily using standard 1/2 inch or 3/4 inch (DN15) BSP threaded ends, which are widely compatible with residential and small commercial plumbing.

Q: What is the measurement accuracy of this water meter?

A: This meter delivers a measurement accuracy of 2% at its nominal flow rate (Qn) and 5% at its minimum flow (Qmin), complying with ISO 4064 Class B standards. It is designed to maintain this accuracy throughout its lifespan, ensuring reliable consumption tracking.

Q: When does the water meter need maintenance or servicing?

A: The Baylan Zenner B Class requires no routine maintenance during its service life. Its design, featuring an engineering polymer rotor, sturdy brass body, and dustproof, waterproof register, supports long-term, trouble-free operation-typically up to 8 years.

Q: Where can this meter be used effectively?

A: This water meter is suitable for cold potable water applications in domestic and small commercial settings. Its robust construction and waterproof rating make it ideal for environments with humidity ranging from 0 to 100% and pressures up to 16 Bar.

Q: What security features protect the meter from tampering?

A: The Baylan Zenner meter includes an anti-tamper, hinged cover and a factory-sealed register, making unauthorized access or manipulation extremely difficult. Its mechanical register is also IP68 rated, further safeguarding internal components.

Q: How does the meter display consumption values?

A: The device uses an analog roller counter with pointers for precise readings. Values are presented in cubic meters (m3), starting from a minimum reading of 0.0001 m3 up to a maximum of 99999 m3, enabling users to monitor water usage accurately.

Q: What are the benefits of using a mechanical (non-electrical) water meter like the Baylan Zenner?

A: As a mechanical meter, it requires no power supply or external connectivity, ensuring immediate response to flow and reliable operation regardless of electrical outages. This makes the Baylan Zenner ideal for locations with varying infrastructure or in remote setups.
